PROMPT REPAIR SERVICE

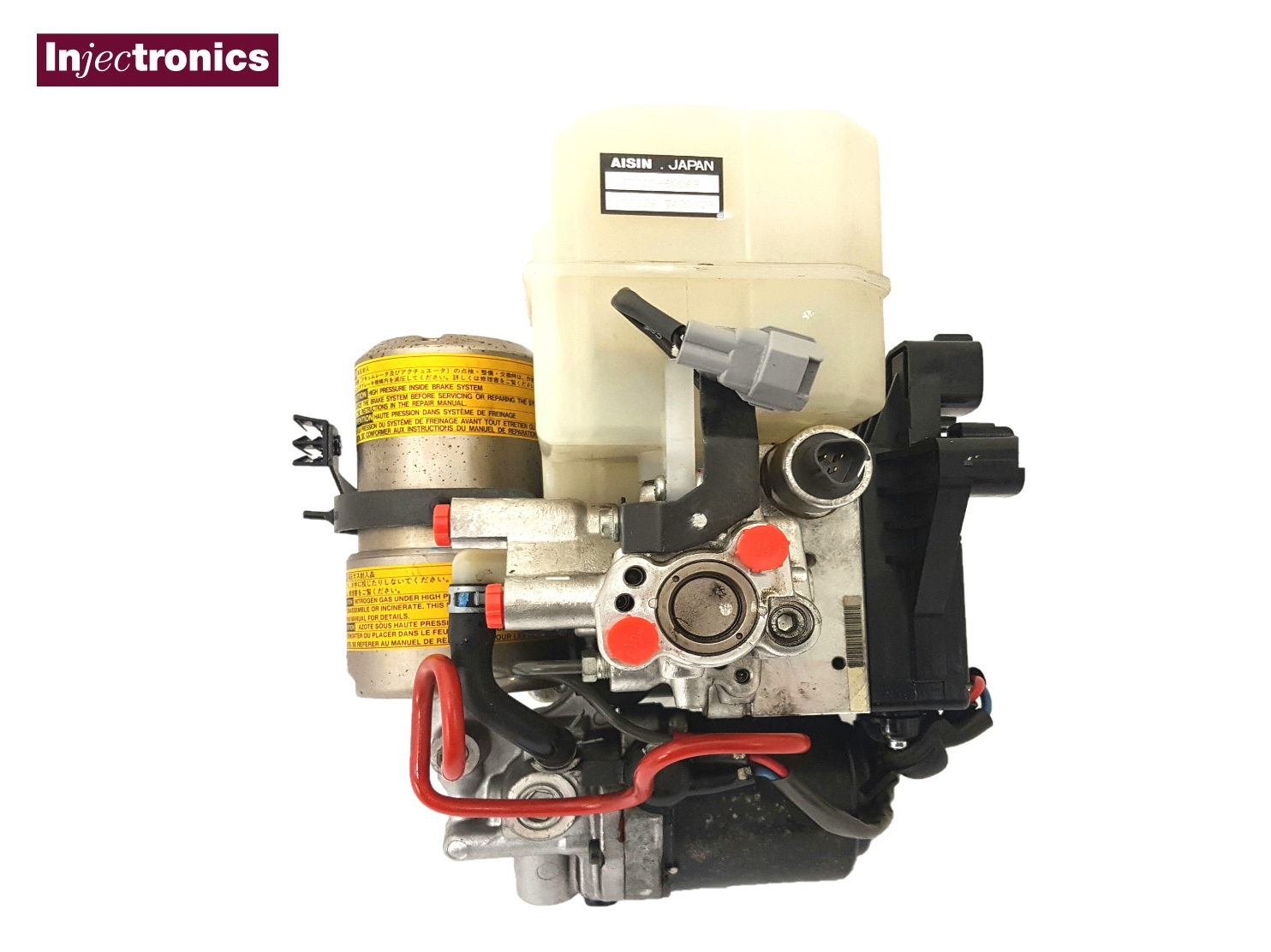

Toyota Landcruiser / Lexus LX ABS / Hydraulic Brake Booster (HBB)
Repair Code: ABSAISREP
Applications
- Lexus LX470 UJZ100R 4.7L Petrol (1998-2000)
- Toyota Landcruiser HDJ100R 4.2L Deisel (2000)
Part Numbers
- 47050-60010
- 4705060043
- 4721060063
Critical Information
- This is a test and repair service of the customers own unit
- NOTE: Contact Injectronics before sending your unit if your fault code or symptoms are not listed in the "Common Faults" tab
- Code 54 (C1254) Pressure Switch Malfunction (Injectronics is unable to repair for this fault code)
- For Fault Code 53 (C1253) Pump motor relay malfunction (Injectronics advises to Check/renew relay and related harness connections in vehicle)
- Before removing unit from the vehicle, check and record all fault codes. Supply these and any other diagnostic information when sending unit to Injectronics.
- Before removing pipes, clean all dust / grit off HBB/ABS unit and pipes.
DRAIN ALL BRAKE FLUID FROM RESERVOIR & SEAL ALL FLUID HOLES IN HYDRAULIC BLOCK TO ENSURE NO DIRT INGRESS. (ref image below)
- To avoid any damage during transportation, we recommend sealing the unit in a strong plastic wrap, with bubble wrap or similiar and in a solid box.(ref image below)
- Followed by packing the sealed box in a second box to reinforce it.
